152
Single seal,Unbalanced,Independent on direction of rotation -
1523 1524
Single seal,Balanced,Dependent on direction of rotation -
59U 58U
Single seal,Unbalanced,Independent on direction of rotation -
59B 58B
Single seal,Banlanced,Independent on direction of rotation -
1527 1528
Single seal,Unbalanced,Dependent on direction of rotation -
BIA
Single seal,Unbalanced,Independent of direction of rotation -
527 528
Single seal,Unbalanced,Independent on direction of rotation -
FBD
Single seal,Unbalanced,Independent of direction of rotation

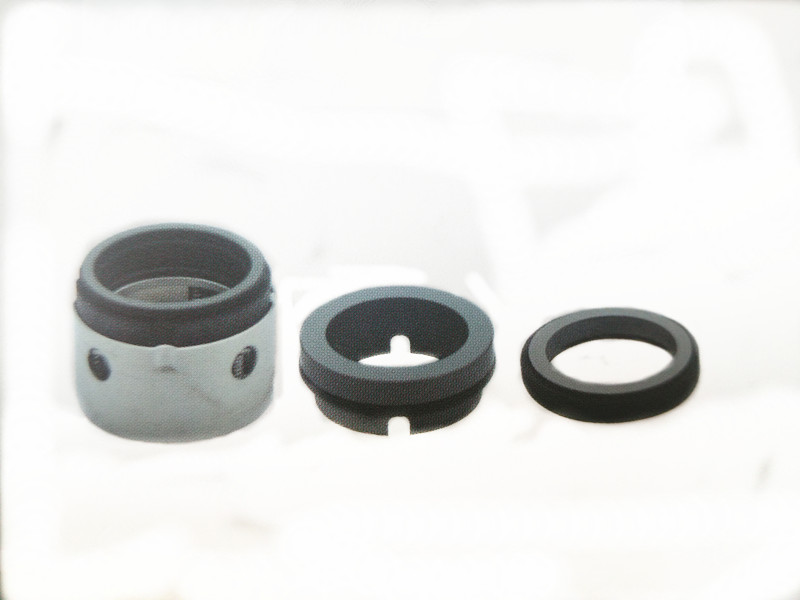

152
model：
Technical parameters：
Mediums to be sealed:Highcorrsion mediums in different concetration,such as sulfuric,hydrchloric scid,phosphoric acetic acid,ect
Pressure in the sealed chamber：≤0.5MPa
Temperature in the sealed chamber：80℃
Linear velocity：≤15m/Sec

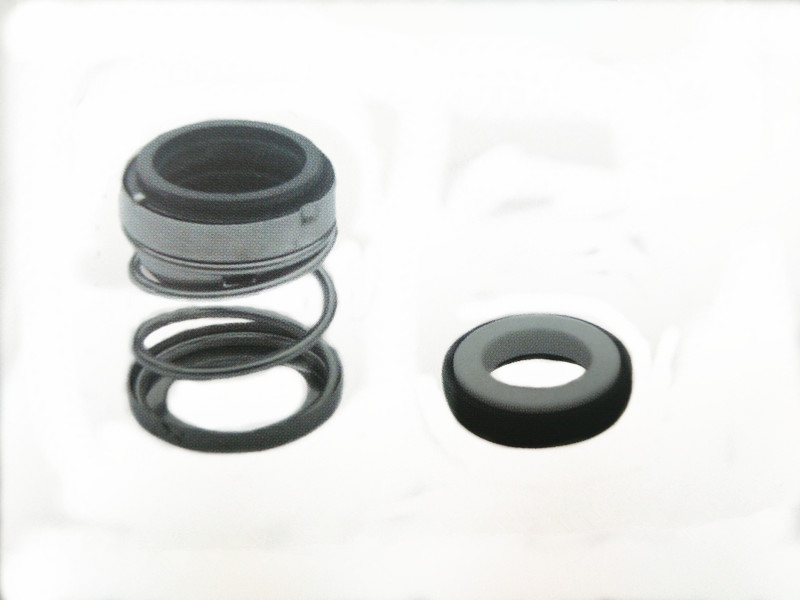

1523 1524
model：
Technical parameters：
Mediums to be sealed:Water,oil,etc. moderate corrosive and below medium
Pressure in the sealed chamber：≤3MPa
Temperature in the sealed chamber：-20℃~150℃
Linear velocity：≤15m/Sec

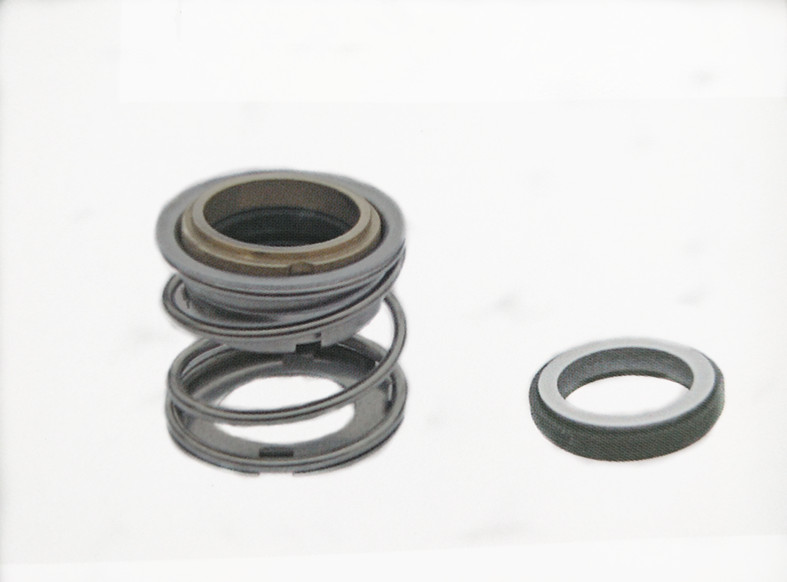

59U 58U
model：
Technical parameters：
Mediums to be sealed:Water,oil,etc. moderate corrosive and below medium
Pressure in the sealed chamber：≤1MPa
Temperature in the sealed chamber：-20℃~200℃
Linear velocity：≤20m/Sec

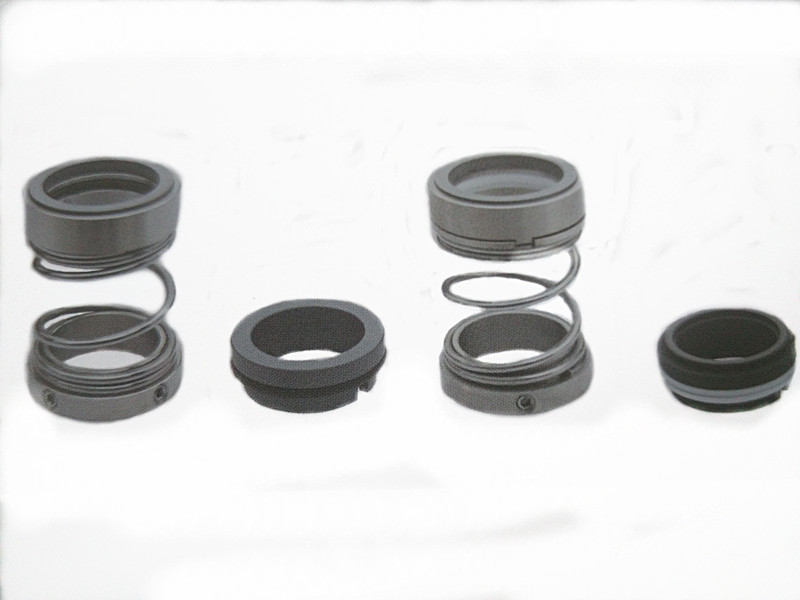

59B 58B
model：
Technical parameters：
Mediums to be sealed:Water,oil,etc. moderate corrosive and below medium
Pressure in the sealed chamber：≤3MPa
Temperature in the sealed chamber：-20℃~200℃
Linear velocity：≤20m/Sec

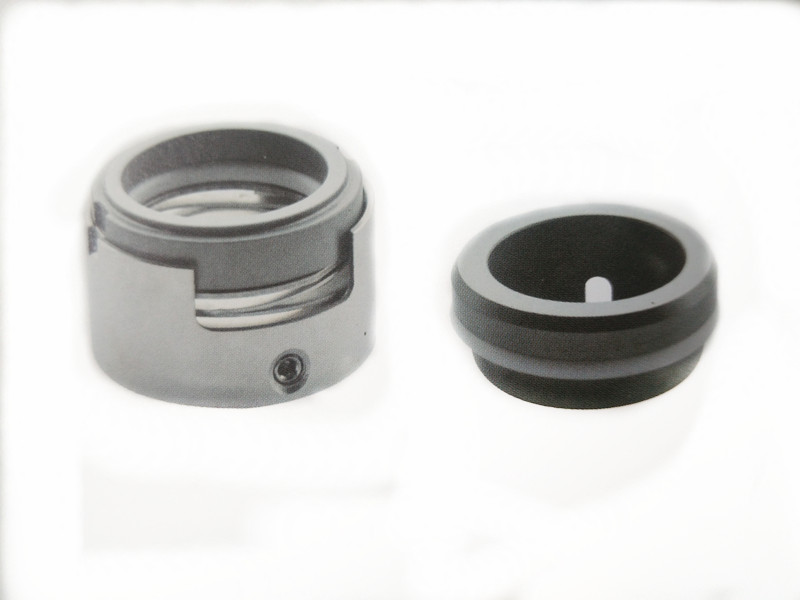

1527 1528
model：
Technical parameters：
Mediums to be sealed:Water,oil,acid，alkali，etc. moderate and below corrosive chemical medium
Pressure in the sealed chamber：≤1MPa
Temperature in the sealed chamber：-20℃~150℃
Linear velocity：≤15m/Sec

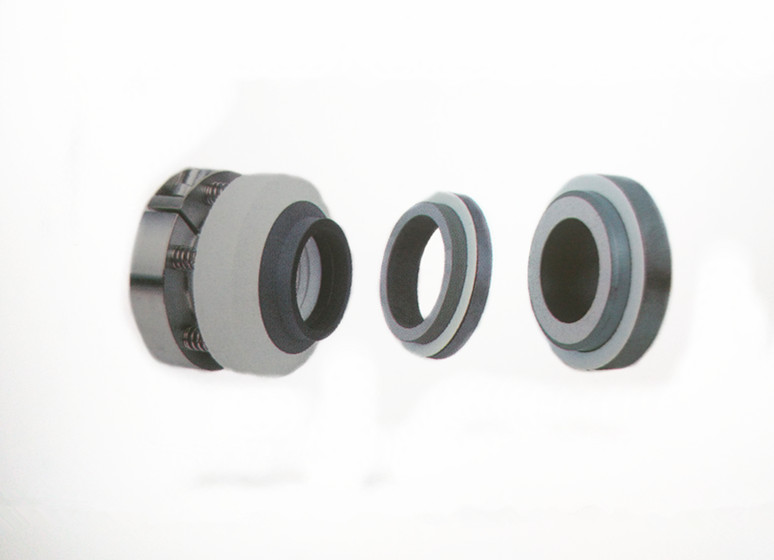

BIA
model：
Technical parameters：
Mediums to be sealed:Water,oil,etc. weak corrosive medium
Pressure in the sealed chamber：≤0.6MPa
Temperature in the sealed chamber：-20℃~100℃
Linear velocity：≤10m/Sec

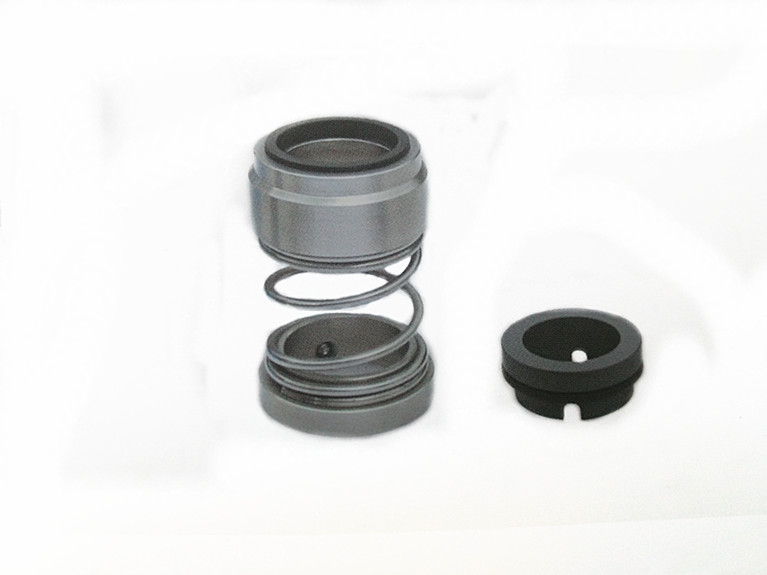

527 528
model：
Technical parameters：
Mediums to be sealed:Water,oil,etc. moderate corrosive and below medium
Pressure in the sealed chamber：≤1MPa
Temperature in the sealed chamber：-20℃~150℃
Linear velocity：≤15m/Sec

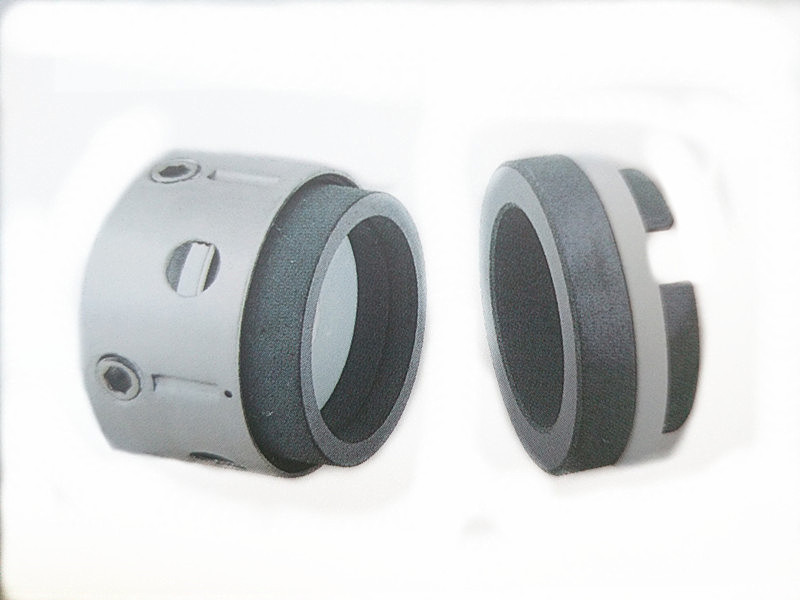

FBD
model：
Technical parameters：
Mediums to be sealed:Water,oil,etc. moderate corrosive and below medium
Pressure in the sealed chamber：≤0.6MPa
Temperature in the sealed chamber：-20℃~100℃
Linear velocity：≤10m/Sec
