103
Single seal,Unbalanced,Dependent on direction of rotation -
109
Single seal,Balanced,Dependent on direction of rotation -
101
Single seal,Unbalanced,Dependent on direction of rotation -
206
Single seal,Unbalanced,Independent on direction of rotation -
T80
Single seal,Balanced,Independent on direction of rotation,Metal bellows -
T85
Single seal,Balanced,Independent on direction of rotation,Metal bellows -
WB2
Single seal,Unbalanced,Independent on direction of rotation -
212
Single seal,Unbalanced,Independent on direction of rotation
103
model：
Technical parameters：
Mediums to be sealed:Water,oil,etc. moderate corrosive and below medium
Pressure in the sealed chamber：≤1MPa
Temperature in the sealed chamber：-50℃~180℃
Linear velocity：≤15m/Sec
Shaft：18-130mm
109
model：
Technical parameters：
Mediums to be sealed:Water,oil,etc. moderate corrosive and below medium
Pressure in the sealed chember：≤1.6MPa
Temperature in the sealed chember：-20℃~180℃
Linear velocity：≤15m/Sec
Shaft：20-120mm
101
model：
Technical parameters：
Mediums to be sealed:Water,oil,etc.moderate corrosive and below medium
Pressure in the sealed chamber：≤0.8MPa
Temperature in the sealed chamber：-20℃~80℃
Linear velocity：≤10m/Sec
Shaft：16-70
206
model：
Technical parameters：
Mediums to be sealed:Explode easily,Easy Burn,Strong Decay Aqua
Pressure in the sealed chamber：≤1.6MPa
Temperature in the sealed chamber：-40℃~180℃
Linear velocity：≤0.5m/Sec

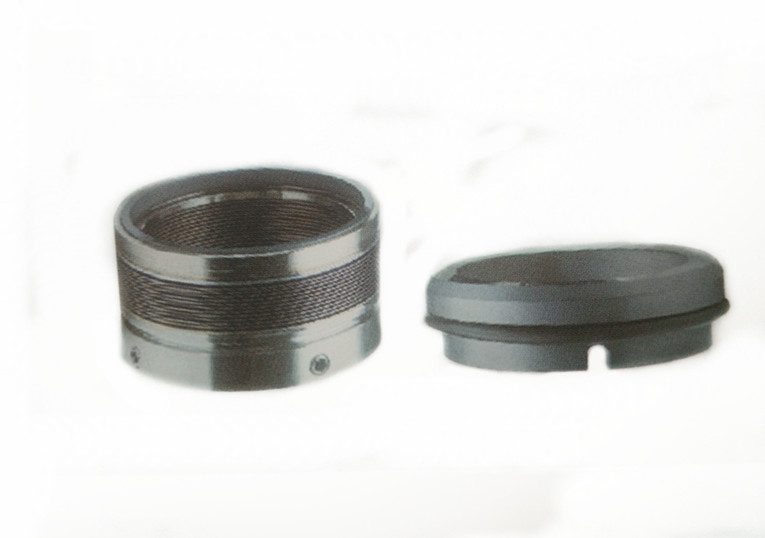

T80
model：
Technical parameters：
Mediums to be sealed:The medium with high temperature and viscidity
Pressure in the sealed chamber：≤2.5MPa
Temperature in the sealed chamber：-20℃~400℃
Linear velocity：≤15m/Sec
T85
model：
Technical parameters：
Mediums to be sealed:The medium with high Temperature and viscidity
Pressure in the sealed chamber：≤2.5MPa
Temperature in the sealed chamber：-20℃~300℃
WB2
model：
Technical parameters：
Mediums to be sealed:Highcorrsion mediums in different concetration,such as sulfuric,hydrchloric scid,phosphoric acetic acid,ect
Pressure in the sealed chamber：≤0.5MPa
Temperature in the sealed chamber：80℃
Linear velocity：≤15m/Sec
212
model：
Technical parameters：
Mediums to be sealed：All kinds of acid(except HF,smog HNO₃)
Pressure in the sealed chamber:≤0.5MPa
Temperature in the sealed chamber：-20℃~120℃
Linear velocity：≤10m/Sec
